Toshiba T3200

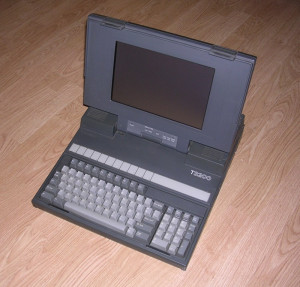

The Toshiba T3200
| Technical Specifications | |
|---|---|
| Year Announced | 1987 |
| Processor | 12MHz Intel 80286, optional 80287-8 math co-processor. |
| RAM | Standard 1MB of RAM, expandable up to 4 MB. |
| Hard disk | Comes standard with a Conner 40 MB IDE hard-drive. |
| Floppy disk | 3,5“ 720 KB double-density or 1.44MB high-density diskette drive |
| Video | EGA on black/orange plasma screen with 640 by 400 native resolution and 4 gray scales. Supports backward compatibility with CGA and Hercules. Maximum resolution supported by graphics card is 720 by 400. |
| I/O Ports | 1x RGB video (DB9), 1x Parallel, 1x RS232C Serial, 1x DIN AT-keyboard connector |
| Internal expansion slots | 1x full size 16/8-bit ISA slot 1x half-size 8-bit ISA slot |
| Power Supply | 100 watt power supply. Can be switched to operate on either 110 volts or 220 volts. |
| Dimensions | 370 x 395 x 99 mm (W x D x H) |
| Weight | 8.5 kg or 18.7 lbs |
| Other features | |
| Software | |
|---|---|
| Operating System | Toshiba MS-DOS 3.2 Toshiba MS-DOS 3.3 EMS PC LAN support BASIC version 3.2 (option) Windows 1.1 (option) |
System Expansion
Hard disk
Toshiba T3200 came with a Conner 40 MB hard drive.
This system can be expanded with an 8-bit and 16-bit ISA expansion cards. Hence, you can purchase an XT-IDE adapter to add a hard drive, such as the XT-CF-MINI or XT-CF-Lite card to add a Compact Flash card as a hard drive. They usually run for $40-$60. You can find them on eBay. Check out http://www.malinov.com/Home/sergeys-projects/xt-cf-lite and https://shop.bluelavasystems.com/products/xt-cf-mini-bootable-8-bit-isa-cf-card-interface-xt-ide
Questions and Answers
Q: My computer gives me a CMOS error
A: If the CMOS battery is empty, you will be prompted with the following error when you power on the machine.
**** Error in CMOS. Bad check sum **** *** Error in CMOS. Bad memory size *** Check system. Then, press [F1] key..... Warning: Default Setup will be set into CMOS memory
Please refer to instructions here:
How do I boot my computer with an empty CMOS battery
Files
Documentation
| File | Size | Description |
|---|---|---|
| Toshiba T3200 - Flyer.pdf | 1.5 MB | Toshiba T3200 flyer with system specifications. |
| Toshiba T3200 - Maintenance Manual.pdf | 4.7 MB | Toshiba T3200 maintenance/service manual. |
| Toshiba - Accessory part list.pdf | 26 KB | Toshiba Accessory part list |
Operating System
| File | Size | Description |
|---|---|---|
| toshiba_dos_3_30.zip | 524 KB | Toshiba MS-DOS 3.30/R3C60SC bootable disk image |
Utilities
| File | Size | Description |
|---|---|---|
| tdiagsup_r3c60.zip | 159 KB | Toshiba Diagnostics and Supplemental Diskette (R3C60) for MS-DOS 3.30. Includes all setup programs and diagnostics utilities. |
| tdiagsup_r3ce0.zip | 284 KB | Toshiba Diagnostics and Supplemental Diskette (R3CE0) for MS-DOS 3.30. Includes all setup programs and diagnostics utilities. Newer than R3C60. Includes support for 386 machines, like the T3200SX. |
| tdiagsup_dos50.zip | 339 KB | Toshiba Diagnostics and Supplemental Diskette for MS-DOS 5.0. Includes all setup programs and diagnostics utilities. |
| test3.zip | 21.1 KB | TEST3.EXE - Setup program for T3100, T3200, T5100 and T5200 series |
| xchad.zip | 5.3 KB | XCHAD.COM - Set Screen Attributes for T3200, T5100 series |
| View more files on this support site | ||
ROM dumps
| File | Size | Description |
|---|---|---|
| t3200_all_roms.zip | 878 KB | All ROM dumps from the T3200 computer. Includes dumps for the 8742 keyboard controller, graphics controller, hard disk controller and two BIOS ROM versions, 033C/034C V4.20B (1988-FEB-26), and 033E/034E V4.61 (1989-FEB-21). Courtesy of Hanno Foest. |
